Dettagli:
Termini di pagamento e spedizione:
|
| Dimensione del PWB: | 50*50mm~400*350mm | morsetto del PWB; ing: | pressione regolabile pneumatica |
|---|---|---|---|
| Sistema: | windows7 | Software: | R & S indipendente |
| Esposizione: | monitor del touch screen | dispositivo di input: | tastiera, topo |
| No della macchina fotografica: | 2 | Potere: | 380AC 50HZ |
| consmption di potere: | 4KW | modo del montaggio: | Raggruppi il bastone del centesimo della presa, bastone del centesimo della presa del centesimo. |
| Spazio delle componenti: | 0.2mm | stazioni degli alimentatori: | 32pcs |
| Ugelli: | 310PCS | Velocità del montaggio: | 30000CPH~35000CPH |
| Altezza del montaggio: | 40mm |
product details

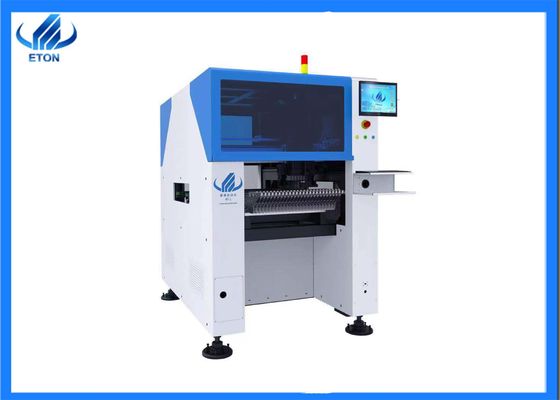

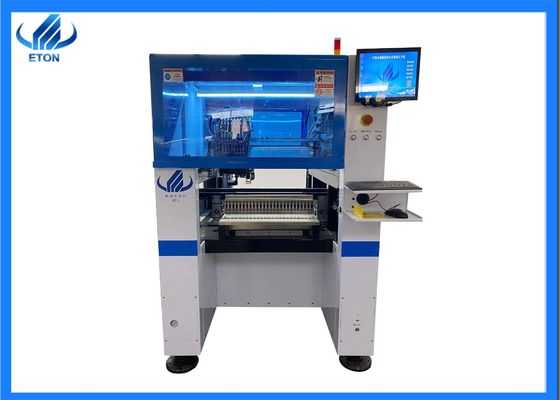

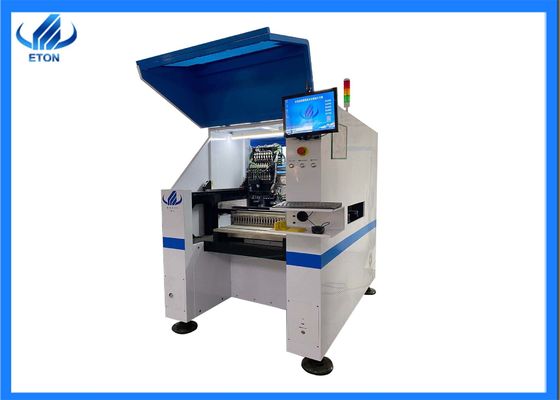

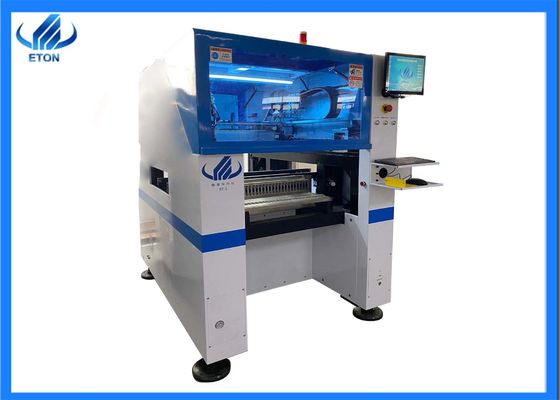

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH～35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.
product Technical parameters of high speed pick and place machine
| Place of origin | Guangdong,China |
| Model number | RT-1 |
| dimension | 1104*1584*1655 |
| PCB size | 50*50～400*350 |
| PCB thickness | 0.1～6mm |
| Mounting speed | 30000～35000CPH |
| Mounting mode | Group picking and separate placing, separate picking and separate placing. |
| Mounting precision | ±0.02cm |
| Feeder stations | 32pcs |
| nozzles | 10pcs |
| Mounting height | 40mm |
| No.of camera | 2 sets of imported camera |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
product parts of smt mounter
Packing & delivery of smt mounter machine
Company profile
Our Our certificates and certifications
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
Name and function of each part of placement machine
1. host
1.1 Main Power Switch: Power on or off main engine
1.2 Visual display: Displays the recognition of images or elements and marks obtained from moving lenses.
1.3 Operating Display: Displays the VIOS software screen operated by the machine, where corrective information is also displayed in case of errors or problems during operation.
1.4 Warning Light: Indicates the operating conditions of the placement machine in green, yellow and red.
Green: Machine in automatic operation
yellow: error (regression origin can not be executed, pick up error, identify fault, etc.) or interlock generated.
red: machine in emergency stop state (in machine or YPU stop button is pressed).
1.5 Emergency Stop button: Press this button to trigger the emergency stop immediately.
2. head assembly
Workhead assembly: move in XY direction (or X direction), pick up parts from feeder and mount on PCB.
Head assembly move handle: When the servo control is released, you can use the hand to move in each direction, and this handle is usually used when moving the head assembly with the hand.
