Dettagli:
Termini di pagamento e spedizione:
|
| Dimensione del PWB: | 50*50mm~400*350mm | morsetto del PWB; ing: | pressione regolabile pneumatica |
|---|---|---|---|
| Sistema: | windows7 | Software: | R & S indipendente |
| Esposizione: | monitor del touch screen | dispositivo di input: | tastiera, topo |
| No della macchina fotografica: | 2 | Potere: | 380AC 50HZ |
| consmption di potere: | 4KW | modo del montaggio: | Raggruppi il bastone del centesimo della presa, bastone del centesimo della presa del centesimo. |
| Spazio delle componenti: | 0.2mm | stazioni degli alimentatori: | 32pcs |
| Ugelli: | 310PCS | Velocità del montaggio: | 30000CPH~35000CPH |
| Altezza del montaggio: | 40mm |
product details

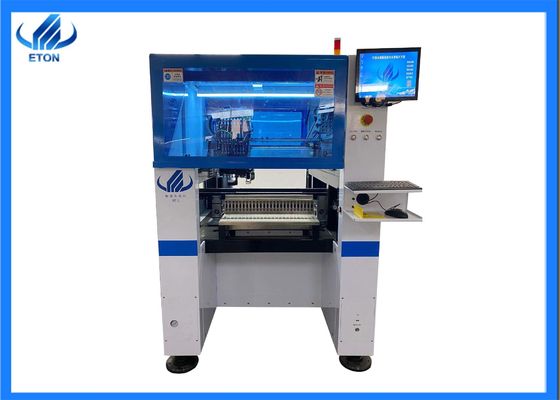

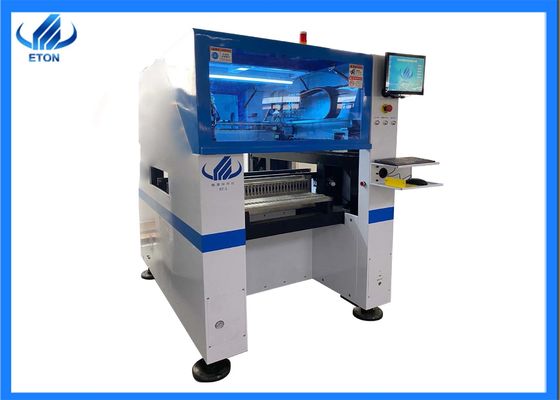

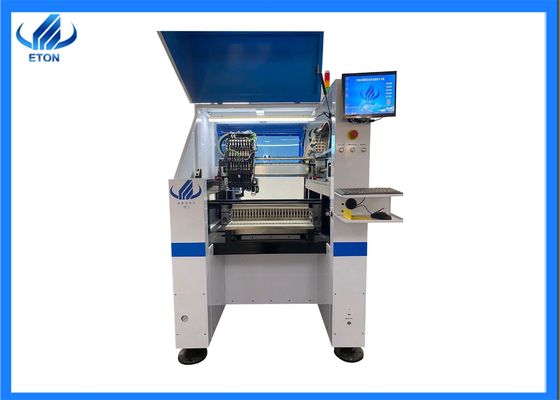

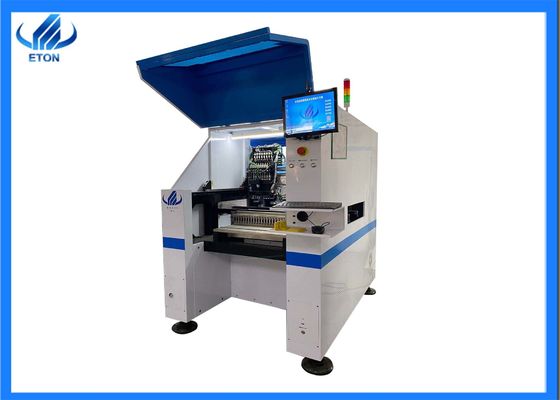

Rt-1 is a single-module multifunctional mounting machine with a capacity of 30000CPH～35000CPH. The components that can be mounted include LED3014/3020/3528/5050, capacitors, resistors, IC and special-shaped components.it applies to LED light and electric board.
product Technical parameters of high speed pick and place machine
| Place of origin | Guangdong,China |
| Model number | RT-1 |
| dimension | 1104*1584*1655 |
| PCB size | 50*50～400*350 |
| PCB thickness | 0.1～6mm |
| Mounting speed | 30000～35000CPH |
| Mounting mode | Group picking and separate placing, separate picking and separate placing. |
| Mounting precision | ±0.02cm |
| Feeder stations | 32pcs |
| nozzles | 10pcs |
| Mounting height | 40mm |
| No.of camera | 2 sets of imported camera |
Business terms of smt mounter
| Accepted delivery terms | EXW, FOB, CIF, CFR |
| Accepted payment currency | USD,CNY |
| Accepted payment type | L/C, T/T |
| Nearest port | Shenzhen |
product parts of smt mounter
Packing & delivery of smt mounter machine
Company profile
Our Our certificates and certifications
contact
Name:Brynn
Email :Brynn@eton-mounter.com
WeChat:13802252825
Telephone:138 0225 2825
Industry related knowledge
6. operation, all parts of the body, such as hands and heads, are ensured to be outside the range of machine movement.
7. machine must have proper grounding < real grounding, not zero line >.
8. do not use machines in environments with gas or extremely dirty.
Note:
a) not trained personnel are strictly prohibited on the computer operation.
b) operation equipment should be safety first, the machine operator should operate the machine strictly according to the operation specification, otherwise it may cause machine damage or endanger personal safety.
c) machine operators should be careful and careful.
Automatic placement machine is used to achieve high-speed, high-precision automatic placement of components, is the most critical and complex equipment in the whole SMT production. As the main equipment in the SMT production line, the placement machine has developed from the early low-speed mechanical placement machine to the high-speed optical alignment placement machine, and to the multi-function, flexible connection modular development.
